Shimano Di2 Service
E-TUBE Diagnostics and Setup
Di2 isn't just a battery and a small motor. It's an electronic system that takes know-how and the right software. Here's how it works, what E-TUBE PROJECT and the SM-PCE02 do, and what a professional service looks like.
Written by Marko Ristivojević, Master Bike Mechanic
In brief
How is a Shimano Di2 service done? The bike connects to E-TUBE PROJECT Professional through the SM-PCE02 interface. We check the components and firmware, run Error Check, set the mechanical limits and fine-tuning, and finish with the Synchro Shift maps.
Software
E-TUBE PROJECT Professional
Interface
SM-PCE02, more stable than Bluetooth
Battery
About 1,500–2,000 km per charge
Goes in for service
System errors, Crash Mode, firmware update, limits
Author: Marko Ristivojević, Master Bike Mechanic · BK MTB Evolution, Istočno Sarajevo
Evolution small workshop: Shimano Di2 without the mystery
Forget cable stretch and imprecise shifting under load. Di2 (Digital Integrated Intelligence) is a sophisticated ecosystem that calls for an expert approach and advanced diagnostics.
For a complete Shimano Di2 service, updates and diagnostics, contact the Evolution Bike Service team in Istočno Sarajevo.
What is Shimano Di2 and how does it work?
No cable – instead of pulling a cable, the shifter sends an electronic signal to the derailleur
Servo motors in the front and rear derailleurs – powerful and precise, they shift even under heavy load
An ecosystem, not just a battery – that's why professional service and regular maintenance matter
Advantages of electronic shifting
Consistency – shifting is the same every time, whatever the mud or weather
Auto-Trim – the front derailleur moves by itself so the chain doesn't rub
Programmability – you can map the buttons on the shifters however you like
Synchro Shift – automatic front derailleur control based on the rear derailleur position
E-TUBE PROJECT Professional
Firmware updates – Shimano often releases updates that fix bugs and improve battery life. A Di2 firmware update keeps the whole system in sync
Error diagnostics – the system logs connection drops and motor overload
Battery drain – it identifies components that draw power while the bike is standing still
Advanced mapping – Shift Speed and multishift options. The mobile app is for quick adjustments, while the PC version is for real service work
Di2 service and diagnostics: step by step

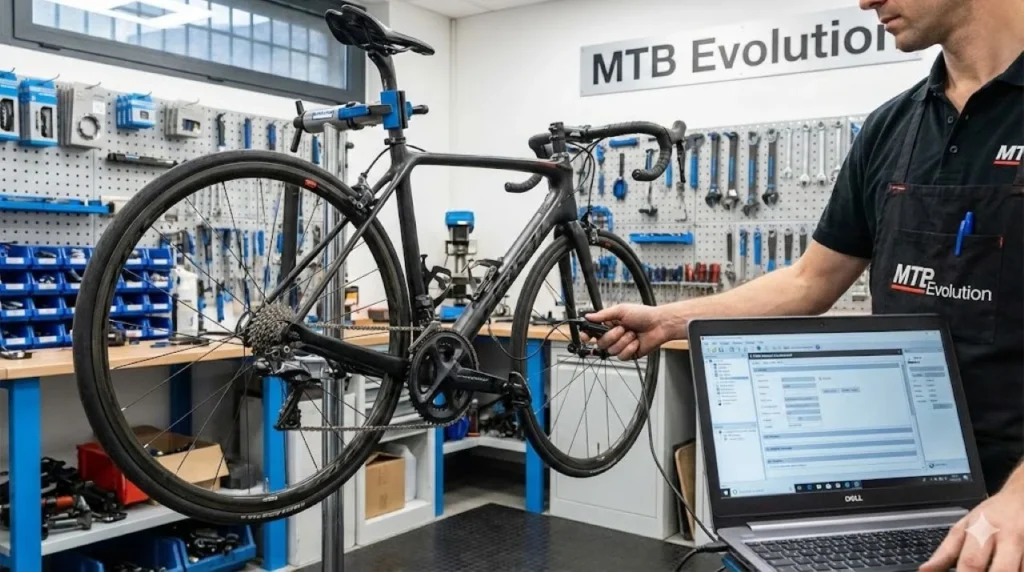

Inspection and connection – check the E-Tube wires for damage, then connect through the SM-PCE02 to E-TUBE PROJECT
Scan and update – the software detects the components and firmware versions. Never mix old and new versions
Error Check – shows disconnections and motor problems, and after an impact we reset Crash Mode through E-TUBE
Limits and fine-tuning – the mechanical limits (High/Low) and B-tension must be perfect, and we do the micro-adjustment on the fifth cassette cog until the chain runs quietly
Synchro Shift – together with the rider, we set up a Semi-Synchro or Full-Synchro map
Pro tip: don't guess, use the data. The SM-PCE02 gives you a stable connection to your computer and more reliable Di2 diagnostics than Bluetooth. Before every firmware update, make sure the battery is charged and all cables are plugged in properly, because an interrupted update can lock a component. Download the app and instructions from the official Shimano website. More on the drivetrain: chain and cassette.
Most common problems and fixes
Battery drains quickly – usually the Bluetooth module isn't going to sleep or the firmware is incompatible. An update fixes it
Derailleur doesn't respond after a crash – Crash Mode is probably active. Reset it through E-TUBE
Can't connect with your phone – reset Bluetooth on the phone or use the SM-PCE02 PC interface
FAQ: Common questions about Shimano Di2 service
How long does a Shimano Di2 battery last?
One charge usually lasts about 1,500–2,000 km, depending on how much you shift and how often you use the front derailleur. Check the level before longer rides.
Is the Di2 system waterproof?
Yes, it's sealed and resistant to rain, mud and washing, but avoid aiming a high-pressure jet directly at the derailleurs and battery.
Can I update the software myself?

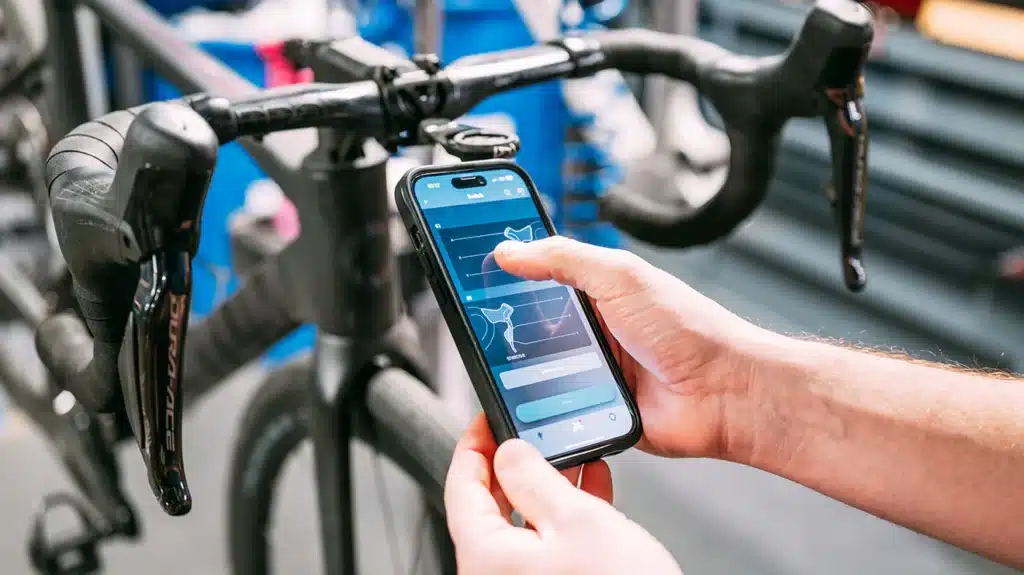

Basic updates run through the mobile E-TUBE app, but diagnosing errors and resetting the system takes a PC interface at the workshop.
What if the battery runs out during a ride?
The system shuts down the front derailleur first. Move the chain to the smaller chainring and use the remaining shifts on the rear derailleur to get home.
